Scanner

Peripheral

Label Value
ID scanner
Since v0.5.0

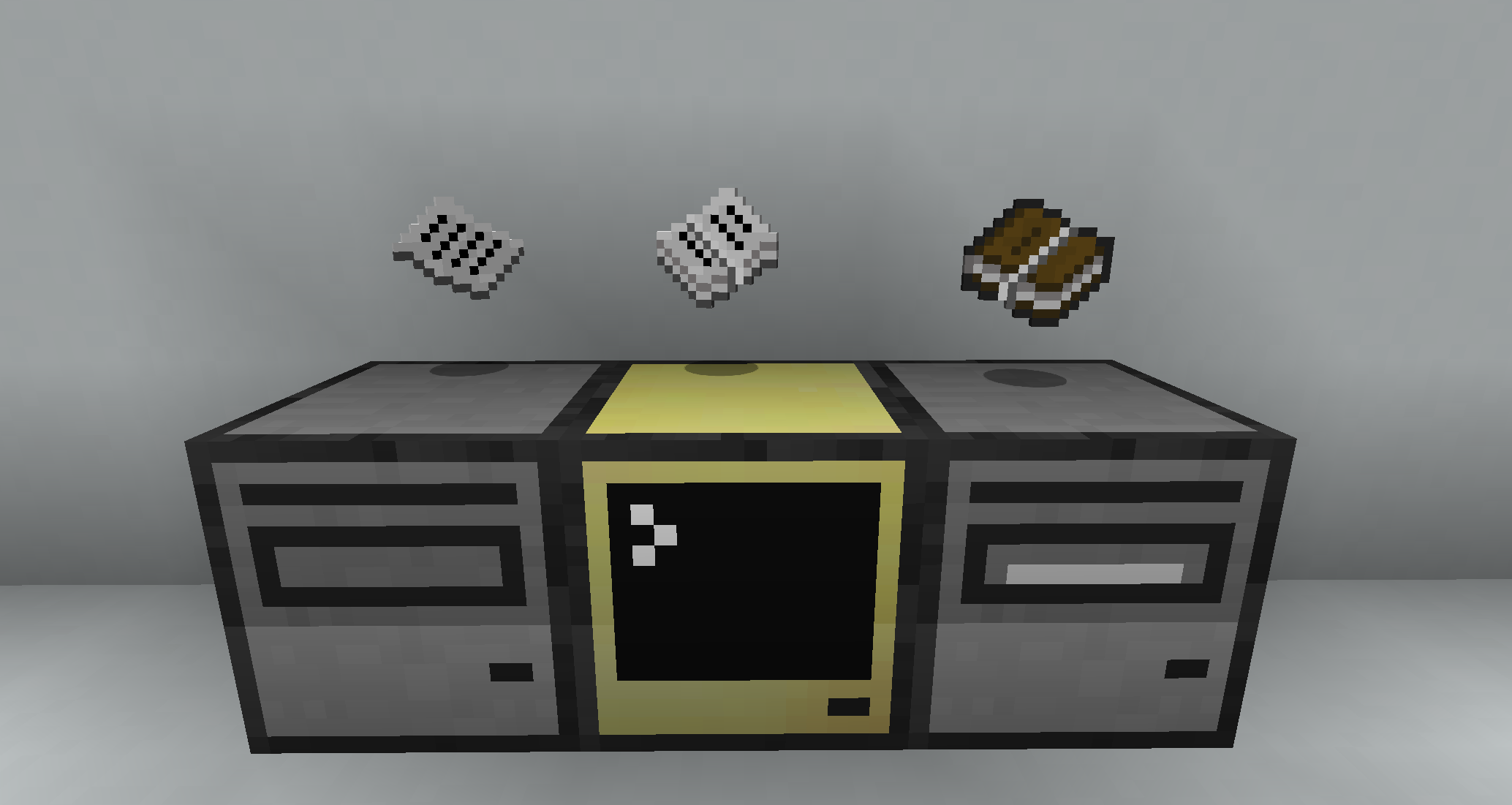

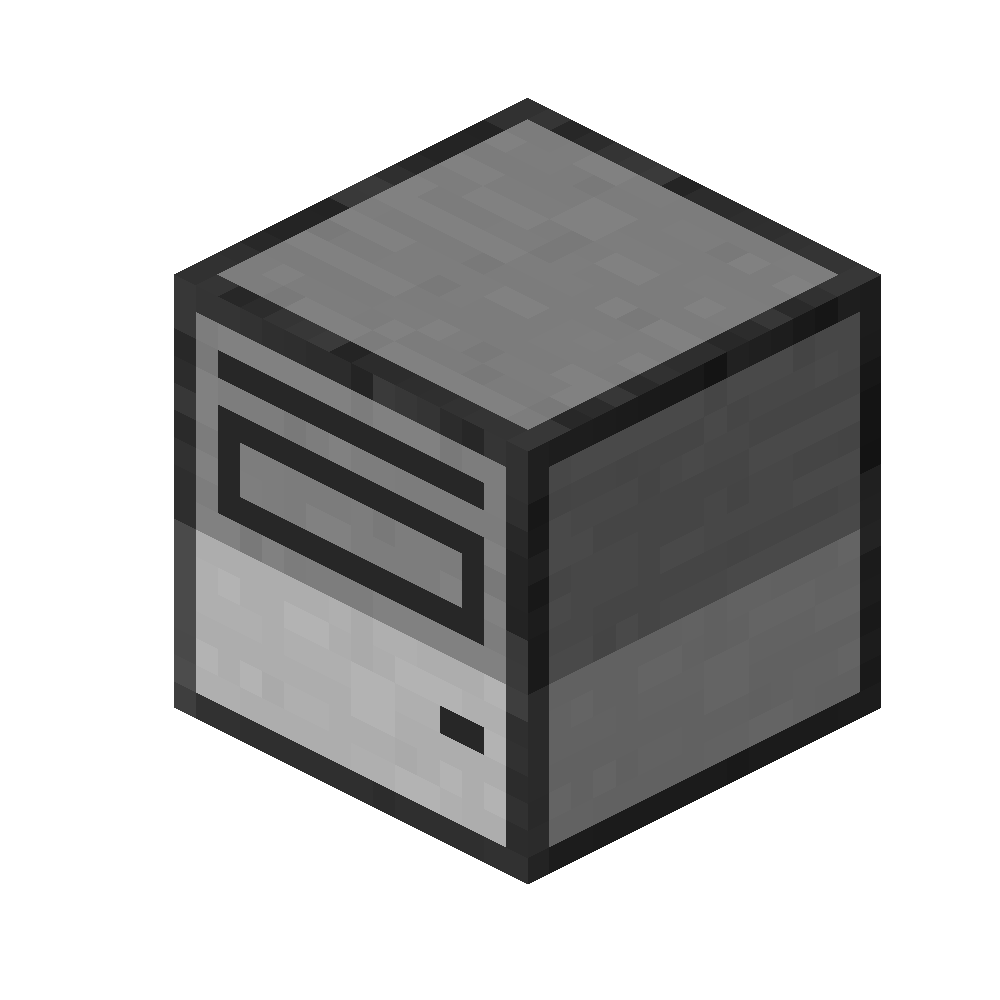

The Scanner is a peripheral capable of reading text and colors from printed paper.

Methods

The network name of the Scanner peripheral is scanner, you can wrap it via the peripheral functions like peripheral.wrap or peripheral.find.

  • hasPages(): boolean Whether the Scanner can read the pages of the item.
  • getLabel(): string Get the title of the printed paper.
  • getPageCount(): number Get the number of pages.
  • eject(): void Eject the inserted item to the front of the block.
  • scan(): table Read the contents of the printout and returns a list of pages.

Pages data

The scan() function returns a list of papers, containing two tables: one for text lines and one for colors respectively. Each table of the text and color is a list comprising the lines of the page.

The colors are in the paint/blit format; that is, each hexadecimal character defines one of the 16 colors.
