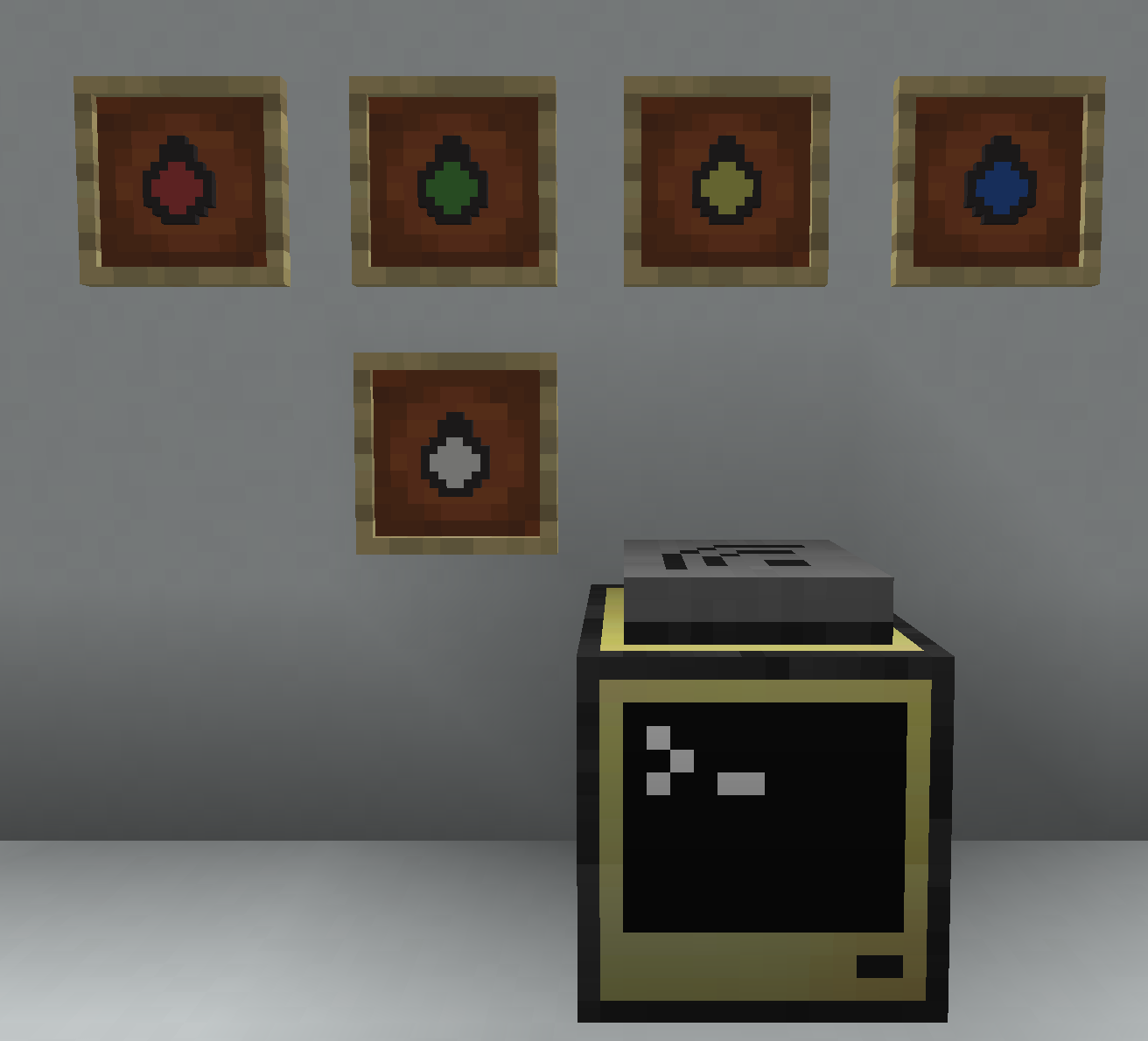

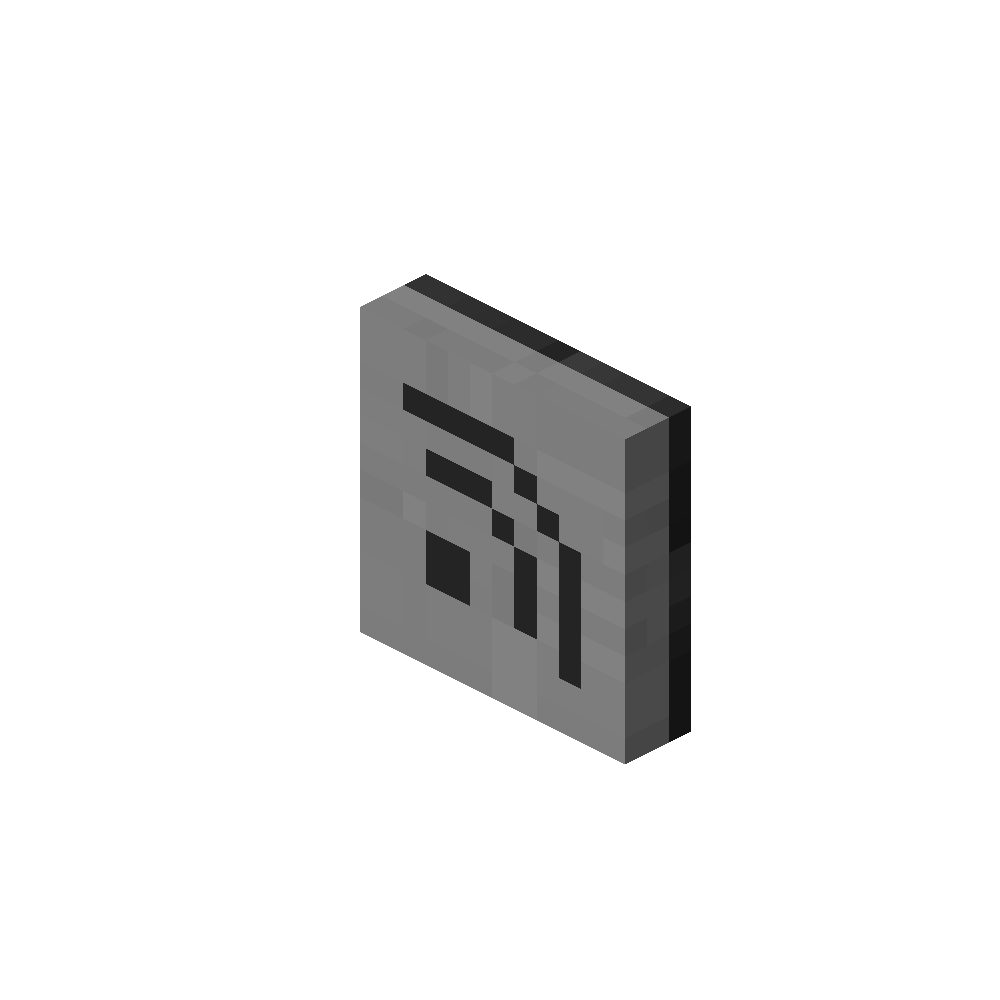

RFID Scanner

The RFID Scanner is a peripheral capable of scanning for RFID Badges in a range of 8 blocks in player inventories.

Just like the NFC Card, a RFID Badge is capable of holding string data up to 128 characters and the readonly flag can be irreversibly enabled to prevent further writes.

Interacting with a living entity will permanently inject the RFID Badge, consuming the item. The RFID Scanner will then be able to scan the entity. Injecting a new RFID Badge again will override the current data. (since 0.3.0)

You can also put dyes along the RFID Badge in a crafting table to dye the badge.

RFID Scanner

Methods¶

The network name of the RFID Scanner peripheral is rfid_scanner, you can wrap it via the peripheral functions like peripheral.wrap or peripheral.find.

scan(): table Scan the area for RFID Badges, returns a list of tables with the properties data: string and distance: number:
```
-- Example of returned value
{
  {
    data = "example data",
    distance = 3.14
  }, [...]
}
```

Writing data¶

The RFID Badge requires the NFC Reader to write data
